Puller can be assembled in 2 or 3-jaw configurations.
Hydraulically-actuated jaws allows cylinder to move in or out with a safe, secure grip on workpiece.
Hydraulic lift system for easy, precise position of puller.
Unique dual pump arrangement. Low pressure pump positions, holds and opens jaws. The high pressure pump advances and retracts the pushing cylinder without releasing clamped jaws.
Swivel casters give ease of mobility.
Guards at pinch points protect operator.
Puller can be mounted on cart 90 degrees to right or left of puller cart centerline, permitting use in tight quarters, such as between machinery.
Self-centering design puller jaws will automatically grip work evenly.
Choice of cylinder with a 169 mm or 337 mm stroke.

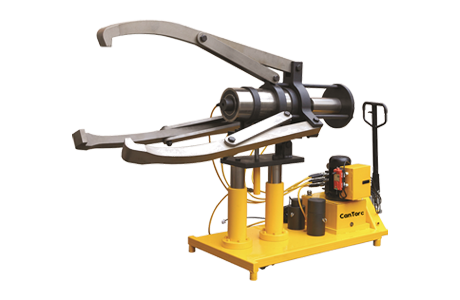

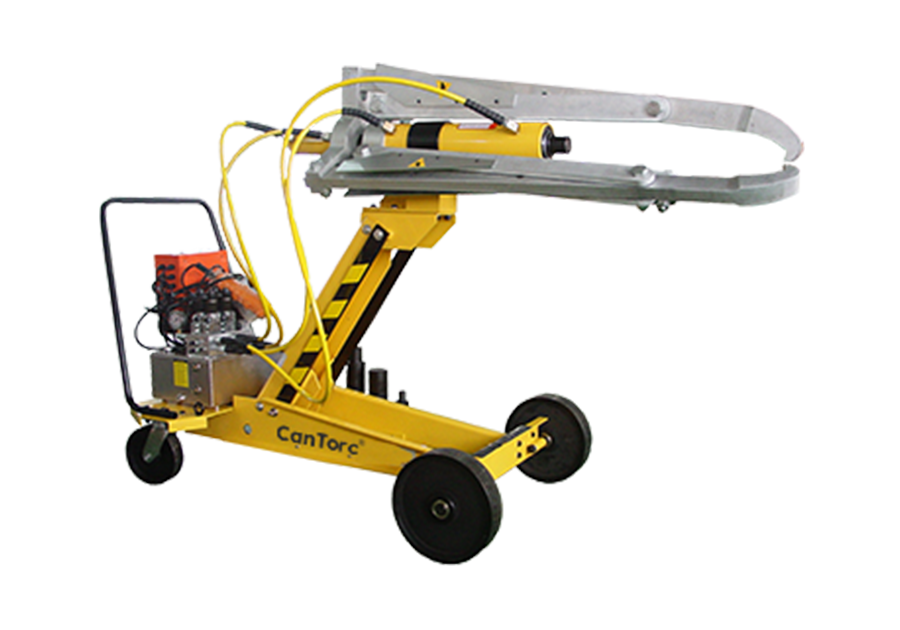

CTLA Series Universal Pullers
Puller can be assembled in 2 or 3-jaw configurations.
Hydraulically-actuated jaws allows cylinder to move in or out with a safe, secure grip on workpiece.
Hydraulic lift system for easy, precise position of puller.
Unique dual pump arrangement. Low pressure pump positions, holds and opens jaws. The high pressure pump advances and retracts the pushing cylinder without releasing clamped jaws.
Swivel casters give ease of mobility.
Guards at pinch points protect operator.
Puller can be mounted on cart 90 degrees to right or left of puller cart centerline, permitting use in tight quarters, such as between machinery.
Self-centering design puller jaws will automatically grip work evenly.
Choice of cylinder with a 169 mm or 337 mm stroke.
Model No. | CTLA-50337 | CTLA-50L337 |
Min.Spread(mm) | 100 | 64 |
Reach Min.Spread（mm） | 381 | 651 |
Max. Spread（mm） | 1220 | 1150 |
Reach Max. Spread（mm） | 178 | 559 |
Overall Length （mm） | 2286 | 2590 |
Cyl. Stroke（mm） | 337 | 337 |
Capacity（ton） | 55 | |
Power Source Requirements | 380V 50Hz | |
Prod. Wt.（kg） | 352 | 379 |
