Standard counteractive arm, optional integral, right angleform.
18 volt rechargeable battery
Optional 5.2AH/8.0AH lithium battery
Torque calibration certificate, optional national metrologyinstitute tools above the provincial level
All-weather high-grade suitcase with optionalhigh-strength toolbox
Customizable counteractive arm
Anti-counteractive arm locks for unloading
Temperature monitoring function for wrench overheating
Battery monitoring, compensation
Torque overload limit function
High capacity air-cooled battery, fast charge charger
Precision ±4%, repeatability ±2%, optional national metrology institute metering optional
Support for larger capacity air-cooled lithium battery 5.2AH or Hi high performance 8.0AH
Standard counteractive arm, optional custom counteractive arm
Support for installation of lifting system, safer operation at high altitude
Support native log, support USB read log
Optional Bluetooth module or WIFI module, torque gateway system, transparent connection
Optional corner + angle mode
High speed system - planetary gear system with automatic shifting clutch function
BCX Series Electric Torque Wrench: Description
Standard counteractive arm, optional integral, right angleform.
18 volt rechargeable battery
Optional 5.2AH/8.0AH lithium battery
Torque calibration certificate, optional national metrologyinstitute tools above the provincial level
All-weather high-grade suitcase with optionalhigh-strength toolbox
Customizable counteractive arm
Standard counteractive arm, optional integral, right angleform.
18 volt rechargeable battery
Optional 5.2AH/8.0AH lithium battery
Torque calibration certificate, optional national metrologyinstitute tools above the provincial level
All-weather high-grade suitcase with optionalhigh-strength toolbox
Customizable counteractive arm

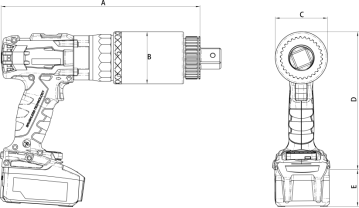

Model No. | Square | Min torque（NM） | Max torque（NM） | Speed(RPM) | Weight(KG) | Size A (mm) | Size B(mm) | Size C(mm) | Size D(mm) | Noise(db) |
BCX-30 | 0.75” | 100 | 300 | 20 | 2.7 | 243 | 63 | 69 | 198 | 80 |
BCX-50 | 0.75” | 125 | 500 | 10.5 | 2.7 | 243 | 63 | 69 | 198 | 80 |
BCX-70 | 0.75” | 175 | 700 | 12 | 3.5 | 269 | 65 | 69 | 198 | 80 |
BCX-80 | 0.75” | 200 | 800 | 6.5 | 4 | 284 | 69 | 69 | 198 | 80 |
BCX-120 | 0.75” | 300 | 1200 | 5.2 | 4 | 284 | 69 | 69 | 198 | 80 |
BCX-140 | 0.75”/1” | 338 | 1350 | 5.7 | 4 | 284 | 69 | 69 | 198 | 80 |
BCX-170 | 1” | 425 | 1700 | 3.7 | 4.9 | 292 | 76 | 76 | 201 | 80 |
BCX-210 | 1” | 525 | 2100 | 3 | 4.9 | 292 | 76 | 76 | 201 | 80 |
BCX-280 | 1” | 700 | 2800 | 2.6 | 5.3 | 304 | 78 | 78 | 202 | 80 |
BCX-310 | 1” | 775 | 3100 | 2.5 | 5.3 | 304 | 78 | 78 | 202 | 80 |
BCX-400 | 1”/1.5” | 1000 | 4000 | 2.2 | 5.9 | 319 | 82 | 82 | 205 | 80 |
BCX-450 | 1”/1.5” | 1125 | 4500 | 1.9 | 7 | 333 | 88 | 88 | 207 | 80 |
BCX-600 | 1.5” | 1500 | 6000 | 1.5 | 9.9 | 343 | 102 | 102 | 214 | 80 |
Optional Bluetooth module or WIFI module, torque gateway system, transparent connection
Optional corner + angle mode
High speed system - planetary gear system with automatic shifting clutch function
