Product Description

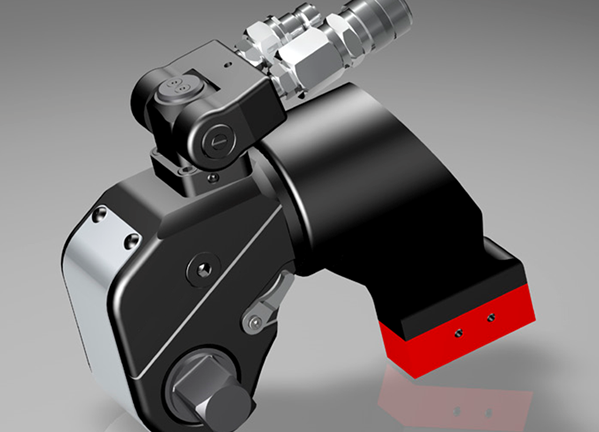

CT Series Square Drive Hydraulic Torque Wrench
CT series is the professional hydraulic torque wrench which CANTORC vigorously extends in international market. Its raw material is aluminum-titanium alloy which makes the wrench light and high intense. CT series has 10 models with the range from 183N.m to 72,000N.m; covers the most of bolts size, and be the most comprehensive available in the market. CANTORC provide after-sales service all over the world, and already got the approved by TUV certificate.
-700Mpa Max working pressure and accuracy keep within ±3%.
-All together 10 models with the range from 183N.m to 72,000N.m, which covers the most bolts size, and be the most comprehensive available in the market.
-The 360*180 degree swivel is free to operation with no space limitation.
-The square drive operate with the high intense socket and suitable with large range of bolts.
-360 degree adjustable reaction arm allows placing in any support point.
-Compact design with the raw material of advanced aluminum-titanium alloy, high intense.
-The new locking coupler ensures the oil keep free access.
700Mpa Max working pressure and accuracy keep within ±3%.
All together 10 models with the range from 183N.m to 72,000N.m, which covers the most bolts size, and be the most comprehensive available in the market.
The 360*180 degree swivel is free to operation with no space limitation.
The square drive operate with the high intense socket and suitable with large range of bolts.
360 degree adjustable reaction arm allows placing in any support point.
Compact design with the raw material of advanced aluminum-titanium alloy, high intense.
The new locking coupler ensures the oil keep free access.
Model number | CT01 | CT03 | CT05 | CT08 | CT10 | CT15 | CT20 | CT25 | CT35 | CT50 |
Max. Torque（Nm） | 1837 | 4512 | 7528 | 10780 | 15516 | 20194 | 26664 | 34725 | 48666 | 72000 |
Min. Torque （Nm） | 183 | 451 | 752 | 1078 | 1551 | 2019 | 2666 | 3472 | 4866 | 7200 |
Socket Size Range（mm） | 16-36 | 22-48 | 27-56 | 30-64 | 36-72 | 39-80 | 42-90 | 48-100 | 64-120 | 72-130 |
Weight（kg） | 2.5 | 5.0 | 8.0 | 11 | 15 | 23 | 26 | 35 | 50 | 86 |

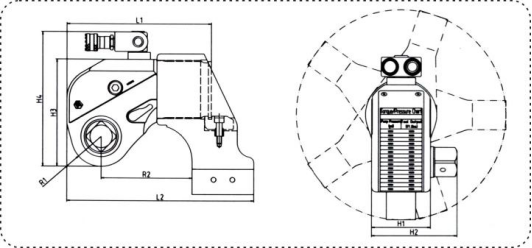

L1（mm） | 144.5 | 178 | 210.5 | 222 | 245.5 | 292.8 | 307.5 | 323 | 372.5 | 400 |
L2（mm） | 173.5 | 229 | 270.5 | 293 | 317.5 | 361.3 | 383.5 | 401 | 496.5 | 516 |
H1（mm） | 50 | 68 | 80 | 90 | 100 | 112 | 120 | 137 | 153 | 160 |
H2（mm） | 72 | 95 | 123 | 134 | 142 | 167.4 | 183 | 200 | 216 | 223 |
H3（mm） | 96 | 127 | 149 | 167 | 182 | 206 | 220 | 247 | 282 | 291 |
H4（mm） | 131 | 176.5 | 199 | 217 | 232 | 276.4 | 270 | 297 | 332 | 341 |
R（mm） | 91.5 | 123.5 | 140 | 165 | 178 | 188.5 | 213 | 228 | 243.5 | 258 |
R1（mm） | 26 | 34 | 39 | 47 | 51 | 56 | 59 | 66 | 77 | 81 |
R2（mm） | 85 | 114 | 137 | 153 | 154 | 174.2 | 186 | 199 | 241 | 259 |
R3（mm） | 29 | 40 | 46.5 | 47 | 58.5 | 67.1 | 71 | 72.5 | 89.5 | 97.5 |
Square Drive | 3/4〞 | 1〞 | 1 1/2〞 | 1 1/2〞 | 1 1/2〞 | 2 1/2〞 | 2 1/2〞 | 2 1/2〞 | 2 1/2〞 | 2 1/2〞 |
