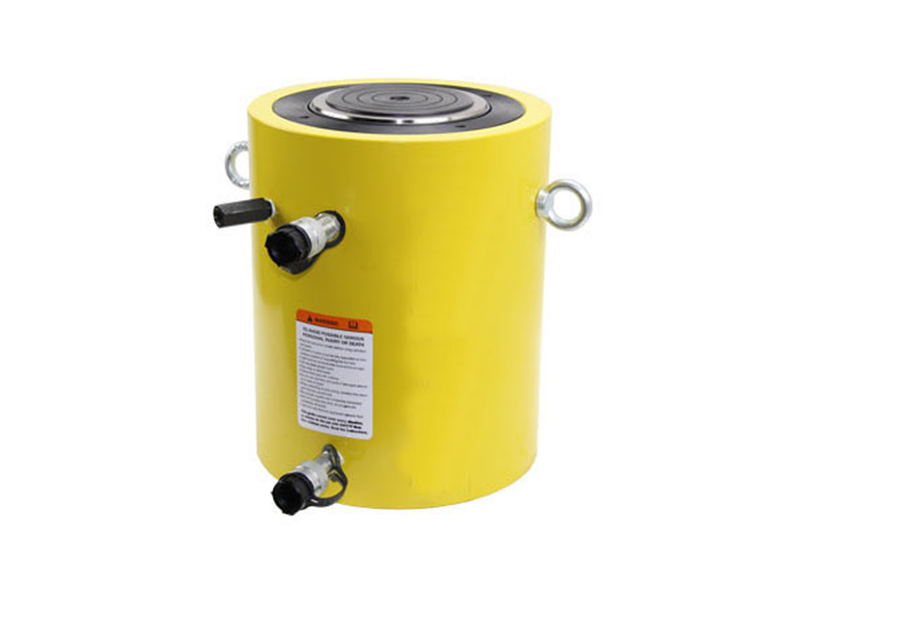

CANTORC provides the largest selection of high-pressure hydraulic double-acting cylinders, jacks and rams. Double-acting hydraulic cylinders feature two connection ports. The plunger within a double-acting cylinder advances and retracts with hydraulic pressure. Advancing and retracting hydraulically provides both push and pull force and precise control of the plunger and faster retraction speed. Double-acting cylinders are ideal for jobs which require controlled retraction with repeatable accuracy or push and pull forces.

Product Description

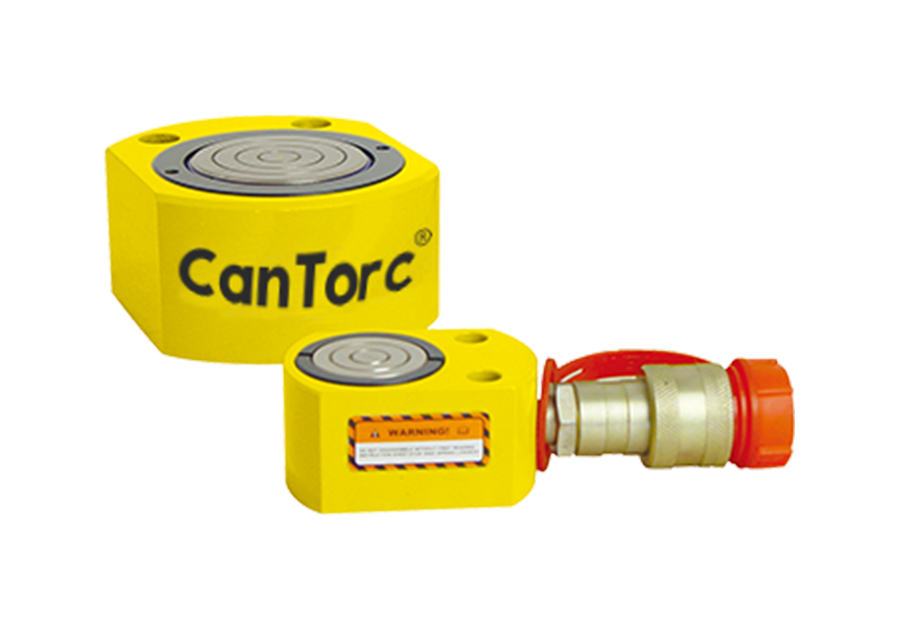

RCS/RSM series Low Profile Single-acting Hydraulic Cylinder

RSM-Series Low Profile Hydraulic Cylinders provide superior durability, performance longevity, safety, and quality in a compact and convenient footprint. These low profile hydraulic jacks are the perfect choice for general lifting and production applications where space is limited or constrained. A low collapsed height, short stroke, and solid construction enables safety and stability in both vertical and horizontal orientations.

Many low-profile hydraulic cylinders rely on the weight of the load to retract the plunger. RSM cylinders are different and include a powerful return spring, which is faster, convenient, and more productive. The entire RSM cylinder range is rated for high-pressure; 10,000 psi (700 bar).

Single-acting spring return

Lightweight, low profile design for use in confined spaces

Baked enamel finish for increased corrosion resistance

Plunger wiper reduces contamination, extending cylinder life

CR400 coupler and dust cap included on all models

Grooved plunger end with threaded holes for mounting tilt saddles

Plated steel plungers
