Bolt Type		3/4"						1"						1-1/2"						2-1/2"
Bolt Type		CT01						CT3						CT5,8,10						CT20,25,35,50
D	N	Type	L1	L2	L3	D1	D2	Type	L1	L2	L3	D1	D2	Type	L1	L2	L3	D1	D2	Type	L1	L2	L3	D1	D2
M16	24	3/4"-S24	54	32	32	40	40
M18	27	3/4"-S27	54	32	32	42	42
M20	30	3/4"-S30	54	33	33	46	44	1"-S30	59	32	32	54	54
M22	34	3/4"-S34	54	33	33	52	44	1"-S34	59	32	32	58	58
M24	36	3/4"-S36	57	33	33	54	44	1"-S36	62	32	32	59	59	1.1/2"-S36	85	44	44	74	74
M27	41	3/4"-S41	58	33	33	60	44	1"-S41	65	38	38	67	54	1.1/2"-S41	85	44	44	74	74
M30	46	3/4"-S46	63	38	38	66	44	1"-S46	65	38	38	74	54	1.1/2"-S46	85	44	44	74	74
M33	50	3/4"-S50	65	40	40	71	44	1"-S50	70	43	43	79	60	1.1/2"-S50	90	45	45	79	79
M36	55	3/4"-S55	70	45	45	77	54	1"-S55	80	42	52	84	60	1.1/2"-S55	90	45	45	84	84	2.1/2"-S55	100	57	57	86	114
M39	60							1"-S60	85	45	57	89	60	1.1/2"S60	100	45	57	94	75	2.1/2"S60	100	52	52	119	119
M42	65							1"-S65	84	45	57	98	70	1.1/2"-S65	100	45	57	98	80	2.1/2"S65	100	52	52	119	119
M45	70							1"-S70	90	50	52	107	70	1.1/2"-S70	105	50	62	104	80	2.1/2"S70	120	67	67	128	128
M48	75							1"-S75	95	50	65	108	70	1.1/2"-S75	110	50	65	118	85	2.1/2"-S75	120	67	67	128	128
M52	80													1.1/2"-S80	115	55	72	118	90	2.1/2"-S80	130	71	71	128	128
M60	90													1.1/2"-S90	125	60	77	139	90	2.1/2"-S90	140	61	73	139	139
M64	95													1.1/2"-S95	130	65	82	139	90	2.1/2"-S95	140	66	73	139	139
M68	100													1.1/2"-S100	135	70	87	144	90	2.1/2"-S100	140	71	81	148	130
M72	105													1.1/2"-S105	135	70	87	149	90	2.1/2"-S105	150	77	89	156	130
M76	110													1.1/2"-S110	135	70	87	158	90	2.1/2"-S110	150	72	90	158	130
M80	115													1.1/2"-S115	135	70	87	159	95	2.1/2"-S115	150	82	98	168	130
M85	120													1.1/2"-S120	135	70	87	168	95	2.1/2"-S120	150	82	98	178	130
M90	130													1.1/2"-S130	155	93	105	189	95	2.1/2"-S130	170	93	114	189	130
M95	135																			2.1/2"-S135	170	93	114	198	130
M100	145																			2.1/2"-S145	170	98	122	210	152
M105	150																			2.1/2"-S150	190	100	140	216	152
M110	155																			2.1/2"-S155	190	100	140	229	152
M115	165																			2.1/2"-S165	190	100	140	241	152

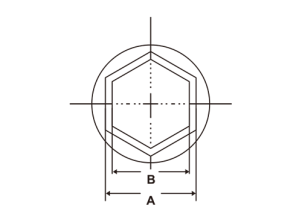

Wrench Model	Cassette	Nut Size	Reducer Insert						Locking
Wrench Model	Cassette	(S)	Type	A/B(mm)	Type	A/B(mm)	Type	A/B(mm)	ring
CF02	CF02-50	50	2G5041	50/41	2G5036	50/36	2G5032	50/32	H-50
	CF02-46	46	2G4636	46/36	2G4632	46/32	2G4630	46/30	H-46
	CF02-41	41	2G4132	41/32	2G4130	41/30	2G4127	41/27	H-41
	CF02-36	36	2G3630	36/30	2G3627	36/27			H-36
	CF02-32	32	2G3227	32/27					H-32
	CF02-30	30
	CF02-27	27
CF04	CF04-65	65	4G6555	65/55	4G6550	65/50	4G6546	65/46	H-56
	CF04-60	60	4G6050	60/50	4G6046	60/46	4G6041	60/41	H-60
	CF04-55	55	4G5546	55/46	4G5541	55/41	4G5536	55/36	H-55
	CF04-50	50	4G5041	50/41	4G5036	50/36	4G5032	50/32	H-50
	CF04-46	46	4G4636	46/36	4G4632	46/32	4G4630	46/30	H-46
	CF04-41	41	4G4132	41/32	4G4130	41/30	4G4127	41/27	H-41
	CF04-36	36	4G3630	36/30	4G3627	36/27			H-36
	CF04-32	32	4G3227	32/27					H-32
	CF04-30	30
	CF04-27	27
CF8	CF8-90	90	8G9080	90/80	8G9075	90/75	8G9070	90/70	H-90
	CF8-85	85	8G8575	85/75	8G8570	85/70	8G8565	85/65	H-85
	CF8-80	80	8G8070	80/70	8G8065	80/65	8G8060	80/60	H-80
	CF8-75	75	8G7565	75/65	8G7560	75/60	8G7555	75/55	H-75
	CF8-70	70	8G7060	70/60	8G7055	70/55	8G7050	70/50	H-70
	CF8-65	65	8G6555	65/55	8G6550	65/50	8G6545	65/45	H-65
	CF8-60	60	8G6050	60/50	8G6046	60/46			H-60
	CF8-55	55	8G5546	55/46	8G5541	55/41			H-55
	CF8-50	50
CF14	CF14-115	115	14G115105	115/105	14G115100	115/100	14G11595	115/95	H-115
	CF14-110	110	14G110100	110/100	14G11095	110/95	14G11090	110/90	H-110
	CF14-105	105	14G10595	105/95	14G10590	105/90	14G10585	105/85	H-105
	CF14-100	100	14G10090	100/90	14G10085	100/85	14G10080	100/80	H-100
	CF14-95	95	14G9585	95/85	14G9580	95/80	14G9575	95/75	H-95
	CF14-90	90	14G9080	90/80	14G9075	90/75	14G9070	90/70	H-90
	CF14-85	85	14G8575	85/75	14G8570	85/70	14G8565	85/65	H-85
	CF14-80	80	14G8070	80/70	14G8065	80/65			H-80
	CF14-75	75	14G7565	75/65					H-75
	CF14-70	70
	CF14-65	65
CF30	CF30-155	155	30G155145	155/145	30G155130	155/130	30G155120	155/120	H-155
	CF30-145	145	30G145130	145/130	30G145120	145/120	30G145115	145/115	H-145
	CF30-130	130	30G130120	130/120	30G130115	130/115	30G130110	130/110	H-130
	CF30-120	120	30G120110	120/110	30G120105	120/105	30G120100	120/100	H-120
	CF30-115	115	30G115105	115/105	30G115100	115/100	30G115595	115/95	H-115
	CF30-110	110	30G110100	110/100	30G11095	110/95	30G11090	110/90	H-110
	CF30-105	105	30G10595	105/95	30G10590	105/90	30G10080	100/80	H-100
	CF30-100	100	30G10090	100/90	30G10085	100/85	30G10080	100/80	H-100
	CF30-95	95	30G9585	95/85	30G9580	95/80			H-95
	CF30-90	90	30G9080	90/80					H-90
	CF30-85	85
	CF30-80	80
