RCS/RSM series Low Profile Single-acting Hydraulic Cylinder

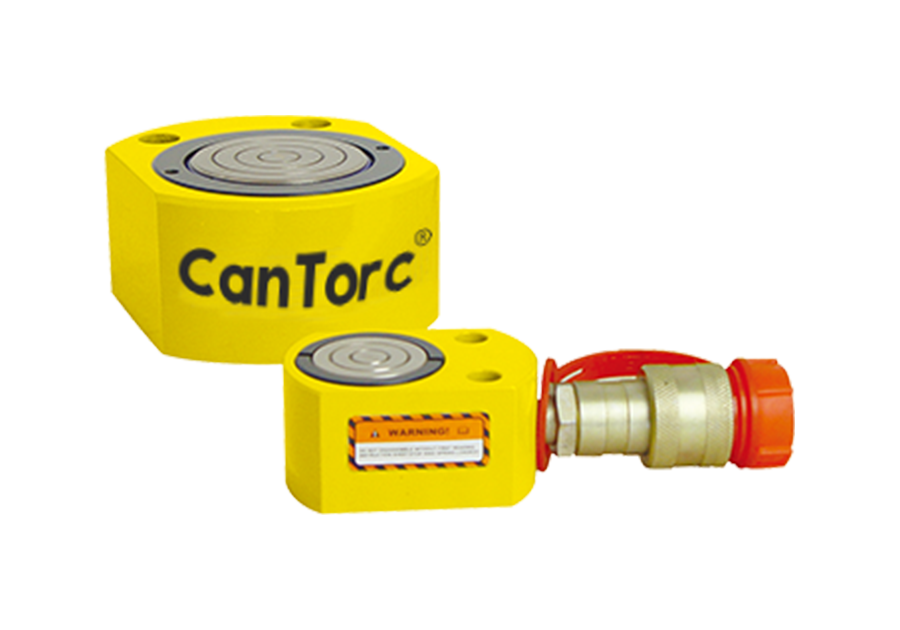

RSM-Series Low Profile Hydraulic Cylinders provide superior durability, performance longevity, safety, and quality in a compact and convenient footprint. These low profile hydraulic jacks are the perfect choice for general lifting and production applications where space is limited or constrained. A low collapsed height, short stroke, and solid construction enables safety and stability in both vertical and horizontal orientations.
Many low-profile hydraulic cylinders rely on the weight of the load to retract the plunger. RSM cylinders are different and include a powerful return spring, which is faster, convenient, and more productive. The entire RSM cylinder range is rated for high-pressure; 10,000 psi (700 bar).
Single-acting spring return
Lightweight, low profile design for use in confined spaces
Baked enamel finish for increased corrosion resistance
Plunger wiper reduces contamination, extending cylinder life
CR400 coupler and dust cap included on all models
Grooved plunger end with threaded holes for mounting tilt saddles
Plated steel plungers
Single-acting spring return
Lightweight, low profile design for use in confined spaces
Baked enamel finish for increased corrosion resistance
Plunger wiper reduces contamination, extending cylinder life
CR400 coupler and dust cap included on all models
Grooved plunger end with threaded holes for mounting tilt saddles
Plated steel plungers
Model number | Capacity tons （kN） | Stroke（mm） | Oil Capacity Advance（cm3 ） | Collapsed Height A（mm） | Extended Height B（mm） | Cylinder dia.D（mm） | Weight（kg） |
RCS-101 | 10（88.9） | 38 | 55 | 88 | 126 | 70 | 4.1 |
RCS-201 | 20（177.8） | 45 | 126 | 98 | 143 | 92 | 5.0 |
RCS-302 | 30（266.7） | 61 | 260 | 117 | 179 | 102 | 6.8 |
RCS-502 | 50（444.4） | 60 | 373 | 122 | 183 | 124 | 10.9 |
RCS-1002 | 100（888.9） | 57 | 723 | 141 | 198 | 165 | 22.7 |
RSM-50 | 5（44.4） | 6 | 4 | 32 | 39 | 59×41 | 1.0 |
RSM-100 | 10（100） | 11 | 16 | 42 | 54 | 82×56 | 1.4 |
RSM-200 | 20（200） | 11 | 31 | 51 | 63 | 102×76 | 3.1 |
RSM-300 | 30（296） | 13 | 55 | 58 | 71 | 118×95 | 4.5 |
RSM-500 | 50（435） | 16 | 99 | 66 | 83 | 140×114 | 6.8 |
RSM-750 | 75（715） | 16 | 164 | 79 | 95 | 165×139 | 11.4 |
RSM-1000 | 100（888） | 16 | 203 | 85 | 102 | 178×152 | 14.5 |
RSM-1500 | 150（1385） | 16 | 277 | 100 | 114 | 216×191 | 26.3 |
