RC Series Cylinders
Product Description

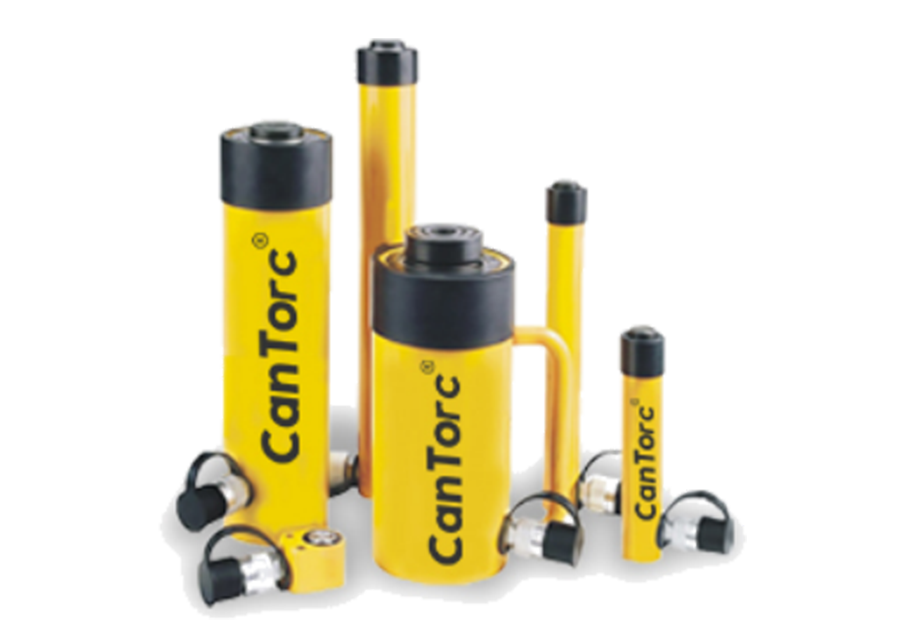

RC Series Single-acting General Purpose Hydraulic Cylinder Hydraulic Jack
Single-acting and heavy-duty return spring.
High strength alloy steel for durability.
Baked enamel finish for the improved corrosion resistance.
Easy-carry handle for macimal portability
RC Series Cylinders
Product Description
RC Series Single-acting General Purpose Hydraulic Cylinder Hydraulic Jack
Single-acting and heavy-duty return spring.
High strength alloy steel for durability.
Baked enamel finish for the improved corrosion resistance.
Easy-carry handle for macimal portability
Model number | Capacity tons （kN） | Stroke（mm） | Cylinder Effective Area Advance （cm 2） | Oil Capacity Advance（cm3 ） | Collapsed HeightA （mm） | Extended Height B （mm） | Cylinder dia.D （mm） | Weight（kg） |
RC-50 | 5 （45） | 16 | 6.5 | 11 | 42 | 57 | 38 | 1.0 |
RC-51 | 25 | 6.5 | 16 | 110 | 135 | 38 | 1.1 | |
RC-53 | 76 | 6.5 | 50 | 165 | 241 | 38 | 1.5 | |
RC-55 | 127 | 6.5 | 83 | 215 | 342 | 38 | 1.9 | |
RC-57 | 177 | 6.5 | 116 | 273 | 450 | 38 | 2.4 | |
RC-59 | 232 | 6.5 | 151 | 323 | 555 | 38 | 2.8 | |
RC-101 | 10 （100） | 26 | 14.5 | 38 | 89 | 115 | 57 | 1.8 |
RC-102 | 54 | 14.5 | 78 | 121 | 175 | 57 | 2.3 | |
RC-104 | 105 | 14.5 | 152 | 171 | 276 | 57 | 3.3 | |
RC-106 | 156 | 14.5 | 226 | 247 | 403 | 57 | 4.4 | |
RC-108 | 203 | 14.5 | 294 | 298 | 502 | 57 | 5.4 | |
RC-1010 | 257 | 14.5 | 373 | 349 | 606 | 57 | 6.4 | |
RC-1012 | 304 | 14.5 | 440 | 400 | 704 | 57 | 6.8 | |
RC-1014 | 356 | 14.5 | 515 | 450 | 806 | 57 | 8.2 | |
RC-151 | 15 （142） | 25 | 20.3 | 51 | 124 | 149 | 69 | 3.3 |
RC-152 | 51 | 20.3 | 104 | 149 | 200 | 69 | 4.1 | |
RC-154 | 101 | 20.3 | 205 | 200 | 301 | 69 | 5.0 | |
RC-156 | 152 | 20.3 | 308 | 271 | 423 | 69 | 6.8 | |
RC-158 | 203 | 20.3 | 411 | 322 | 525 | 69 | 8.2 | |
RC-1510 | 254 | 20.3 | 516 | 373 | 627 | 69 | 9.5 | |
RC-1512 | 305 | 20.3 | 619 | 423 | 728 | 69 | 10.9 | |
RC-1514 | 356 | 20.3 | 723 | 474 | 830 | 69 | 11.8 | |
RC-251 | 25 （232） | 26 | 33.2 | 83 | 140 | 165 | 86 | 5.9 |
RC-252 | 51 | 33.2 | 169 | 165 | 216 | 86 | 6.4 | |
RC-254 | 102 | 33.2 | 339 | 215 | 317 | 86 | 8.2 | |
RC-256 | 158 | 33.2 | 528 | 273 | 431 | 86 | 10.0 | |
RC-258 | 210 | 33.2 | 697 | 323 | 533 | 86 | 12.3 | |
RC-2510 | 261 | 33.2 | 863 | 374 | 635 | 86 | 14.1 | |
RC-2512 | 311 | 33.2 | 1033 | 425 | 736 | 86 | 16.3 | |
RC-2514 | 362 | 33.2 | 1202 | 476 | 838 | 86 | 17.7 | |
RC-308 | 30（295） | 209 | 41.9 | 880 | 387 | 596 | 102 | 18.1 |
RC-502 | 50 （498） | 51 | 71.3 | 364 | 176 | 227 | 127 | 15.0 |
RC-504 | 101 | 71.3 | 727 | 227 | 328 | 127 | 19.1 | |
RC-506 | 159 | 71.3 | 1134 | 283 | 441 | 127 | 23.2 | |
RC-5013 | 337 | 71.3 | 2403 | 460 | 797 | 127 | 37.7 | |
RC-756 | 75 （718） | 156 | 102.6 | 1601 | 285 | 441 | 146 | 29.5 |
RC-7513 | 333 | 102.6 | 3427 | 92 | 825 | 146 | 59.0 | |
RC-1006 | 100 （933） | 168 | 133.2 | 2238 | 357 | 525 | 178 | 59.0 |
RC-10010 | 260 | 133.2 | 3463 | 449 | 709 | 178 | 72.6 |
