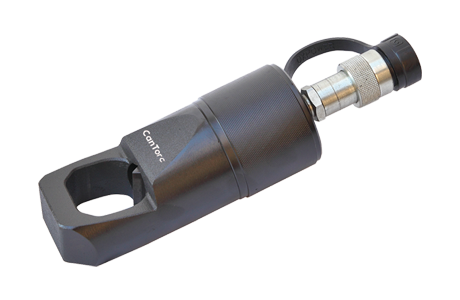

Description Series CTNC
Model: Series CTNC
Product Line: Industrial Tools, Bolting Tools
Compact and ergonomic design, easy to use
Unique angled head design
Single-acting, spring return cylinder
Heavy duty chisels can be reground
Nut Splitters include spare chisel, spare set screw and wrench used to secure the chisel.
For applications with bolt sizes that are common to two tool model sizes, we recommend to select the larger of the two tools for the best results.
Description Series CTNC
Model: Series CTNC
Product Line: Industrial Tools, Bolting Tools
Compact and ergonomic design, easy to use
Unique angled head design
Single-acting, spring return cylinder
Heavy duty chisels can be reground
Nut Splitters include spare chisel, spare set screw and wrench used to secure the chisel.
For applications with bolt sizes that are common to two tool model sizes, we recommend to select the larger of the two tools for the best results.
Model No. | Bolt Range(mm) | Capacity (ton) | Oil Capacity (mm3 ) | Dimensions(mm) | Weigh(kg) | |||||
A | B | C | D | E | H | |||||
CTNC-1319 | 10-19 | 5 | 15 | 40 | 170 | 7 | 19 | 28 | 48 | 1.2 |
CTNC-1924 | 19-24 | 10 | 20 | 54 | 191 | 10 | 26 | 40 | 62 | 2.0 |
CTNC-2432 | 24-32 | 15 | 60 | 64 | 222 | 13 | 29 | 51 | 72 | 3.0 |
CTNC-3241 | 32-41 | 20 | 80 | 75 | 244 | 17 | 36 | 66 | 88 | 4.4 |
CTNC-4150 | 41-50 | 35 | 155 | 94 | 288 | 21 | 45 | 74 | 105 | 8.2 |
CTNC-5060 | 50-60 | 50 | 240 | 106 | 318 | 23 | 54 | 90 | 128 | 11.8 |
CTNC-6075 | 60-75 | 90 | 492 | 156 | 393 | 26 | 72 | 110 | 181 | 34.1 |
