产品名称： IMPACT Socket

上市日期：2023-06-01

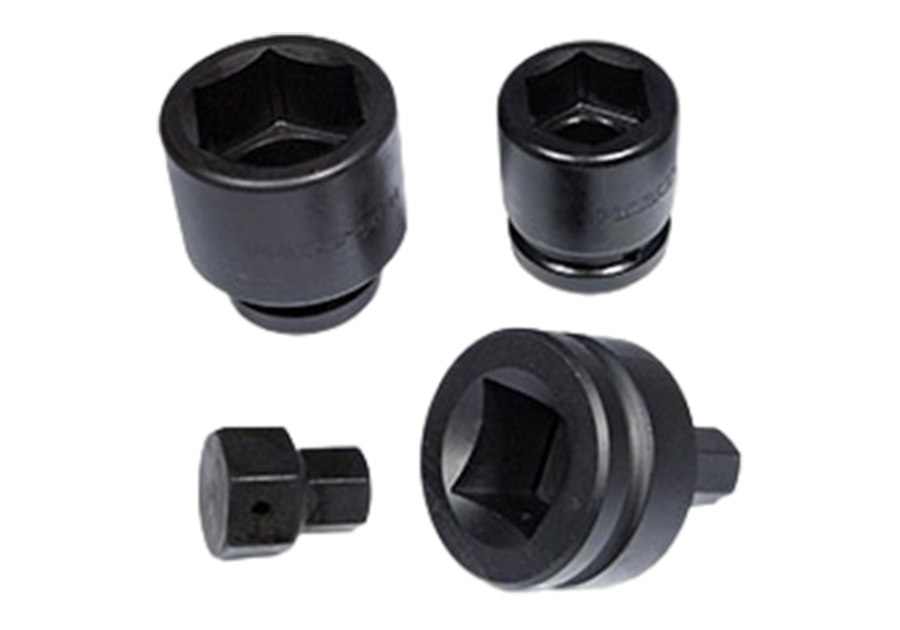

IMPACT Socket

IMPACT Socket

Introduction： Standard Sockets Selection ChartBolt Type3/4"1"1-1/2"2-...

Types：

Colour：

Dominant color：，Color matching：

General Description
Product Specifications
Detailed Parameters

Standard Sockets Selection Chart

Bolt Type		3/4"						1"						1-1/2"						2-1/2"
Bolt Type		CT01						CT3						CT5,8,10						CT20,25,35,50
D	N	Type	L1	L2	L3	D1	D2	Type	L1	L2	L3	D1	D2	Type	L1	L2	L3	D1	D2	Type	L1	L2	L3	D1	D2
M16	24	3/4"-S24	54	32	32	40	40
M18	27	3/4"-S27	54	32	32	42	42
M20	30	3/4"-S30	54	33	33	46	44	1"-S30	59	32	32	54	54
M22	34	3/4"-S34	54	33	33	52	44	1"-S34	59	32	32	58	58
M24	36	3/4"-S36	57	33	33	54	44	1"-S36	62	32	32	59	59	1.1/2"-S36	85	44	44	74	74
M27	41	3/4"-S41	58	33	33	60	44	1"-S41	65	38	38	67	54	1.1/2"-S41	85	44	44	74	74
M30	46	3/4"-S46	63	38	38	66	44	1"-S46	65	38	38	74	54	1.1/2"-S46	85	44	44	74	74
M33	50	3/4"-S50	65	40	40	71	44	1"-S50	70	43	43	79	60	1.1/2"-S50	90	45	45	79	79
M36	55	3/4"-S55	70	45	45	77	54	1"-S55	80	42	52	84	60	1.1/2"-S55	90	45	45	84	84	2.1/2"-S55	100	57	57	86	114
M39	60							1"-S60	85	45	57	89	60	1.1/2"S60	100	45	57	94	75	2.1/2"S60	100	52	52	119	119
M42	65							1"-S65	84	45	57	98	70	1.1/2"-S65	100	45	57	98	80	2.1/2"S65	100	52	52	119	119
M45	70							1"-S70	90	50	52	107	70	1.1/2"-S70	105	50	62	104	80	2.1/2"S70	120	67	67	128	128
M48	75							1"-S75	95	50	65	108	70	1.1/2"-S75	110	50	65	118	85	2.1/2"-S75	120	67	67	128	128
M52	80													1.1/2"-S80	115	55	72	118	90	2.1/2"-S80	130	71	71	128	128
M60	90													1.1/2"-S90	125	60	77	139	90	2.1/2"-S90	140	61	73	139	139
M64	95													1.1/2"-S95	130	65	82	139	90	2.1/2"-S95	140	66	73	139	139
M68	100													1.1/2"-S100	135	70	87	144	90	2.1/2"-S100	140	71	81	148	130
M72	105													1.1/2"-S105	135	70	87	149	90	2.1/2"-S105	150	77	89	156	130
M76	110													1.1/2"-S110	135	70	87	158	90	2.1/2"-S110	150	72	90	158	130
M80	115													1.1/2"-S115	135	70	87	159	95	2.1/2"-S115	150	82	98	168	130
M85	120													1.1/2"-S120	135	70	87	168	95	2.1/2"-S120	150	82	98	178	130
M90	130													1.1/2"-S130	155	93	105	189	95	2.1/2"-S130	170	93	114	189	130
M95	135																			2.1/2"-S135	170	93	114	198	130
M100	145																			2.1/2"-S145	170	98	122	210	152
M105	150																			2.1/2"-S150	190	100	140	216	152
M110	155																			2.1/2"-S155	190	100	140	229	152
M115	165																			2.1/2"-S165	190	100	140	241	152

Bolt Type		3/4"						1"						1-1/2"						2-1/2"
Bolt Type		CT01						CT3						CT5,8,10						CT20,25,35,50
D	N	Type	L1	L2	L3	D1	D2	Type	L1	L2	L3	D1	D2	Type	L1	L2	L3	D1	D2	Type	L1	L2	L3	D1	D2
M16	24	3/4"-S24	54	32	32	40	40
M18	27	3/4"-S27	54	32	32	42	42
M20	30	3/4"-S30	54	33	33	46	44	1"-S30	59	32	32	54	54
M22	34	3/4"-S34	54	33	33	52	44	1"-S34	59	32	32	58	58
M24	36	3/4"-S36	57	33	33	54	44	1"-S36	62	32	32	59	59	1.1/2"-S36	85	44	44	74	74
M27	41	3/4"-S41	58	33	33	60	44	1"-S41	65	38	38	67	54	1.1/2"-S41	85	44	44	74	74
M30	46	3/4"-S46	63	38	38	66	44	1"-S46	65	38	38	74	54	1.1/2"-S46	85	44	44	74	74
M33	50	3/4"-S50	65	40	40	71	44	1"-S50	70	43	43	79	60	1.1/2"-S50	90	45	45	79	79
M36	55	3/4"-S55	70	45	45	77	54	1"-S55	80	42	52	84	60	1.1/2"-S55	90	45	45	84	84	2.1/2"-S55	100	57	57	86	114
M39	60							1"-S60	85	45	57	89	60	1.1/2"S60	100	45	57	94	75	2.1/2"S60	100	52	52	119	119
M42	65							1"-S65	84	45	57	98	70	1.1/2"-S65	100	45	57	98	80	2.1/2"S65	100	52	52	119	119
M45	70							1"-S70	90	50	52	107	70	1.1/2"-S70	105	50	62	104	80	2.1/2"S70	120	67	67	128	128
M48	75							1"-S75	95	50	65	108	70	1.1/2"-S75	110	50	65	118	85	2.1/2"-S75	120	67	67	128	128
M52	80													1.1/2"-S80	115	55	72	118	90	2.1/2"-S80	130	71	71	128	128
M60	90													1.1/2"-S90	125	60	77	139	90	2.1/2"-S90	140	61	73	139	139
M64	95													1.1/2"-S95	130	65	82	139	90	2.1/2"-S95	140	66	73	139	139
M68	100													1.1/2"-S100	135	70	87	144	90	2.1/2"-S100	140	71	81	148	130
M72	105													1.1/2"-S105	135	70	87	149	90	2.1/2"-S105	150	77	89	156	130
M76	110													1.1/2"-S110	135	70	87	158	90	2.1/2"-S110	150	72	90	158	130
M80	115													1.1/2"-S115	135	70	87	159	95	2.1/2"-S115	150	82	98	168	130
M85	120													1.1/2"-S120	135	70	87	168	95	2.1/2"-S120	150	82	98	178	130
M90	130													1.1/2"-S130	155	93	105	189	95	2.1/2"-S130	170	93	114	189	130
M95	135																			2.1/2"-S135	170	93	114	198	130
M100	145																			2.1/2"-S145	170	98	122	210	152
M105	150																			2.1/2"-S150	190	100	140	216	152
M110	155																			2.1/2"-S155	190	100	140	229	152
M115	165																			2.1/2"-S165	190	100	140	241	152
