Puller can be assembled in 2 or 3-jaw configurations.
Hydraulically-actuated jaws allows cylinder to move in or out with a safe, secure grip on workpiece.
Hydraulic lift system for easy, precise position of puller.
Unique dual pump arrangement. Low pressure pump positions, holds and opens jaws. The high pressure pump advances and retracts the pushing cylinder without releasing clamped jaws.
Swivel casters give ease of mobility.
Guards at pinch points protect operator.
Puller can be mounted on cart 90 degrees to right or left of puller cart centerline, permitting use in tight quarters, such as between machinery.
Self-centering design puller jaws will automatically grip work evenly.
Choice of cylinder with a 169 mm or 337 mm stroke.
CTLA Series Universal Pullers
Puller can be assembled in 2 or 3-jaw configurations.
Hydraulically-actuated jaws allows cylinder to move in or out with a safe, secure grip on workpiece.
Hydraulic lift system for easy, precise position of puller.
Unique dual pump arrangement. Low pressure pump positions, holds and opens jaws. The high pressure pump advances and retracts the pushing cylinder without releasing clamped jaws.
Swivel casters give ease of mobility.
Guards at pinch points protect operator.
Puller can be mounted on cart 90 degrees to right or left of puller cart centerline, permitting use in tight quarters, such as between machinery.
Self-centering design puller jaws will automatically grip work evenly.
Choice of cylinder with a 169 mm or 337 mm stroke.
Model No. | CTLA-50337 | CTLA-50L337 |
Min.Spread(mm) | 100 | 64 |
Reach Min.Spread（mm） | 381 | 651 |
Max. Spread（mm） | 1220 | 1150 |
Reach Max. Spread（mm） | 178 | 559 |
Overall Length （mm） | 2286 | 2590 |
Cyl. Stroke（mm） | 337 | 337 |
Capacity（ton） | 55 | |
Power Source Requirements | 380V 50Hz | |
Prod. Wt.（kg） | 352 | 379 |

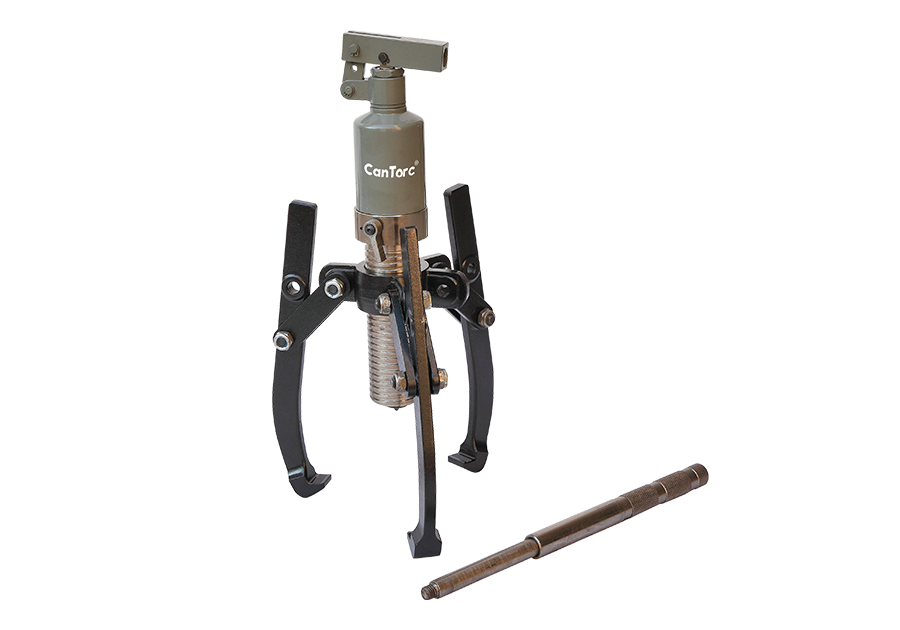

Description
Model: BHP351G Series: BHP
Model No. | BHP-152 | BHP-251G | BHP-351G | BHP-551G | |
Cap.（ton） | 8 | 20 | 30 | 50 | |
Weight（kg） | 22.0 | 56.0 | 91.0 | 160.0 | |
sets | Hand Pump | P-142 | P-392 | P-392 | P-392 |
Cylinder | RWH-121 | RWH-202 | RWH-302 | RWH-603 | |
Saddle | -- | HP-2015 | HP-3015 | HP-5016 | |
Hose | H9004 | H9004 | H9004 | H9004 | |
Gauge | GF-120B | GF-813B | GF-813B | GF-813B | |
Gauge Adaptor | GA-4 | GA-3 | GA-3 | GA-3 | |
Grip Puller Model | BHP-1762 | BHP-252 | BHP-352 | BHP-552 | |
Spread Max. 2Jaw（mm） | 249 | 400 | 593 | 899 | |
Spread Max. 3 Jaw（mm） | 249 | 499 | 800 | 1100 | |
Reach Max. 2 Jaw（mm） | 252 | 300 | 387 | 700 | |
Reach Max. 3 Jaw（mm） | 252 | 300 | 387 | 700 | |
Jaw Thickness（mm） | 15 | 20 | 24 | 30 | |
jaw Width（mm） | 23 | 27 | 38 | 39 | |
Adjusting Lenght | 3/4＂-16UNF | 1＂-8UNC | 1 1/4＂-7UNC | 1 5/8＂-5.5UNC | |
Adjusting （mm） | 400 | 675 | 795 | 975 | |
Cantorc grip puller sets provide precise hydraulic control allowing fast, efficient and safe pulling
High quality, forged steel components provide superior reliability and service
Includes hydraulic set
Warning Do not exceed 50% of the rated puller capacity when using a double crosshead (2 griparms) or when using puller legs in combination with bearing puller attachment.

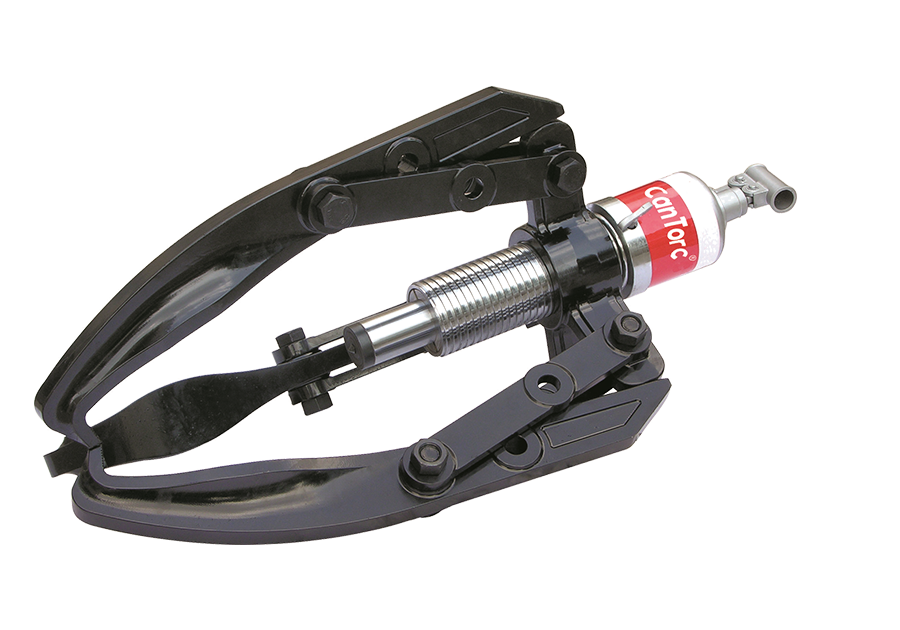

Description
Model: BHP162
Cantorc grip puller sets provide precise hydraulic control allowing fast, efficient and safe pulling
High quality, forged steel components provide superior reliability and service
Includes hydraulic set
Warning Do not exceed 50% of the rated puller capacity when using a double crosshead (2 griparms) or when using puller legs in combination with bearing puller attachment.
Can Torc pullers are tested for top performance
and reliability at maximum capacity and jaw spread.
Easily metered release valve control knob.
Spring loaded live centering cone.
Bladder type oil reservoir.
Rapid adjustment.
Use with 2 or 3-jaws.
Supplied with a sturdy storage/carrying case
Can Torc pullers are tested for top performance
and reliability at maximum capacity and jaw spread.
Easily metered release valve control knob.
Spring loaded live centering cone.
Bladder type oil reservoir.
Rapid adjustment.
Use with 2 or 3-jaws.
Supplied with a sturdy storage/carrying case
