Description

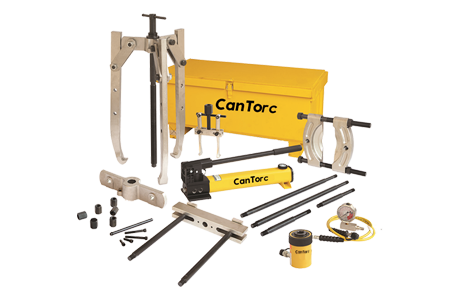

Model: BHP351G Series: BHP
Model No. | BHP-152 | BHP-251G | BHP-351G | BHP-551G | |
Cap.（ton） | 8 | 20 | 30 | 50 | |
Weight（kg） | 22.0 | 56.0 | 91.0 | 160.0 | |
sets | Hand Pump | P-142 | P-392 | P-392 | P-392 |
Cylinder | RWH-121 | RWH-202 | RWH-302 | RWH-603 | |
Saddle | -- | HP-2015 | HP-3015 | HP-5016 | |
Hose | H9004 | H9004 | H9004 | H9004 | |
Gauge | GF-120B | GF-813B | GF-813B | GF-813B | |
Gauge Adaptor | GA-4 | GA-3 | GA-3 | GA-3 | |
Grip Puller Model | BHP-1762 | BHP-252 | BHP-352 | BHP-552 | |
Spread Max. 2Jaw（mm） | 249 | 400 | 593 | 899 | |
Spread Max. 3 Jaw（mm） | 249 | 499 | 800 | 1100 | |
Reach Max. 2 Jaw（mm） | 252 | 300 | 387 | 700 | |
Reach Max. 3 Jaw（mm） | 252 | 300 | 387 | 700 | |
Jaw Thickness（mm） | 15 | 20 | 24 | 30 | |
jaw Width（mm） | 23 | 27 | 38 | 39 | |
Adjusting Lenght | 3/4＂-16UNF | 1＂-8UNC | 1 1/4＂-7UNC | 1 5/8＂-5.5UNC | |
Adjusting （mm） | 400 | 675 | 795 | 975 | |
Cantorc grip puller sets provide precise hydraulic control allowing fast, efficient and safe pulling
High quality, forged steel components provide superior reliability and service
Includes hydraulic set
Warning Do not exceed 50% of the rated puller capacity when using a double crosshead (2 griparms) or when using puller legs in combination with bearing puller attachment.
Description

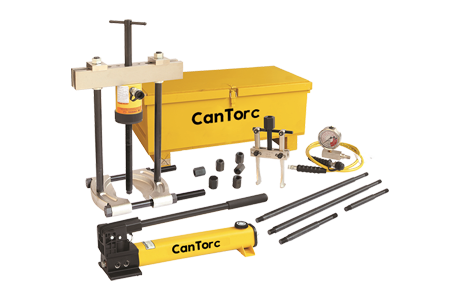

Model: BHP162
Cantorc grip puller sets provide precise hydraulic control allowing fast, efficient and safe pulling
High quality, forged steel components provide superior reliability and service
Includes hydraulic set
Warning Do not exceed 50% of the rated puller capacity when using a double crosshead (2 griparms) or when using puller legs in combination with bearing puller attachment.
