Product Description

CT Series Square Drive Hydraulic Torque Wrench

CT series is the professional hydraulic torque wrench which CANTORC vigorously extends in international market. Its raw material is aluminum-titanium alloy which makes the wrench light and high intense. CT series has 10 models with the range from 183N.m to 72,000N.m; covers the most of bolts size, and be the most comprehensive available in the market. CANTORC provide after-sales service all over the world, and already got the approved by TUV certificate.

-700Mpa Max working pressure and accuracy keep within ±3%.

-All together 10 models with the range from 183N.m to 72,000N.m, which covers the most bolts size, and be the most comprehensive available in the market.

-The 360*180 degree swivel is free to operation with no space limitation.

-The square drive operate with the high intense socket and suitable with large range of bolts.

-360 degree adjustable reaction arm allows placing in any support point.

-Compact design with the raw material of advanced aluminum-titanium alloy, high intense.

-The new locking coupler ensures the oil keep free access.

Product Description

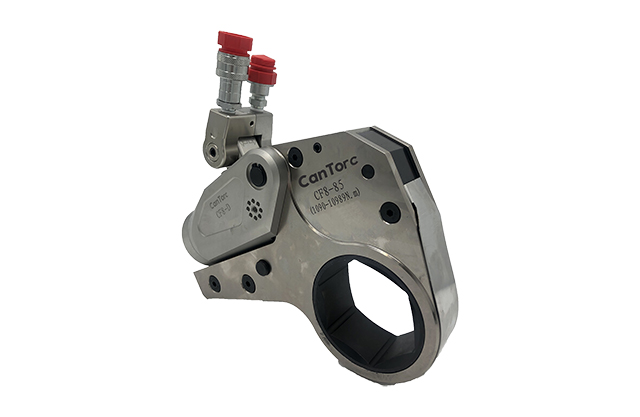

Low Profile Hydraulic Torque Wrench

CF series is the professional low profile hydraulic torque wrench which CANTORC vigorously extends in international market. Compare with the square drive hydraulic torque wrench, this series work directly on the nuts, and its body suits well in the narrow place. CF covers the nuts from S19 to S175. To fulfill all different working situations, the user can just replace the hexagon cassettebecause the hexagon cassette is changeable, or add the reducer. CANTORC provide after-sales service all over the world, and already got the approved by TUV certificate.

70Mpa max working pressure; keep the accuracy ±3%.

5 models with the range from 232-44593N.m

360*180 degree swivel &360*360 degree swivel allow the wrench free to operation with no space limitation.

More accuracy and easier when the wrench direct operate on the nuts.

Compact design with longer arm fully advances the reliability.

Compact design with the raw material of advanced -aluminum-titanium alloy, high intense.

The new locking coupler ensures the oil keep free access.

Standard counteractive arm, optional integral, right angleform.

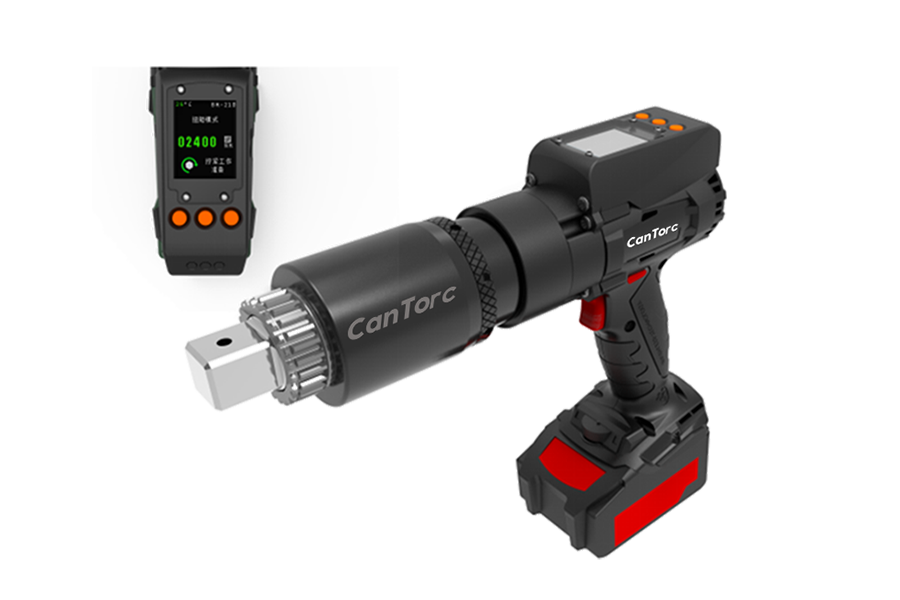

18 volt rechargeable battery

Optional 5.2AH/8.0AH lithium battery

Torque calibration certificate, optional national metrologyinstitute tools above the provincial level

All-weather high-grade suitcase with optionalhigh-strength toolbox

Customizable counteractive arm

Anti-counteractive arm locks for unloading

Temperature monitoring function for wrench overheating

Battery monitoring, compensation

Torque overload limit function

High capacity air-cooled battery, fast charge charger

Precision ±4%, repeatability ±2%, optional national metrology institute metering optional

Support for larger capacity air-cooled lithium battery 5.2AH or Hi high performance 8.0AH

Standard counteractive arm, optional custom counteractive arm

Support for installation of lifting system, safer operation at high altitude

Support native log, support USB read log

Optional Bluetooth module or WIFI module, torque gateway system, transparent connection

Optional corner + angle mode

High speed system - planetary gear system with automatic shifting clutch function

1.Torque setting and digital display, torque adjustment to 1Nm increase and decrease.
2.10-gear quick adjustment function of preset.
3.Convenient adjustment mode with supporting gear adjustment mode, suitable for construction environment.
4.Bolt torque comparison table mode, easy to find the right torque.
5.Gain adjustment function for quick adjustment of the in-position torque.
6.Extremely excellent power-to-weight ratio, wider torque range. Lighter and smaller.
7.Automatic reset anti-seize counteractive arm function for easier operation.
8.User (operator, administrator) hierarchical function management.

Support third-party intelligent proofreading torque, use software to adjust gain hardware compensation, extend tool life
The torque value of locking and loosening can be recommended according to the strength grade and size of the bolt, and the reference value can be modified to conform to the actual working condition.

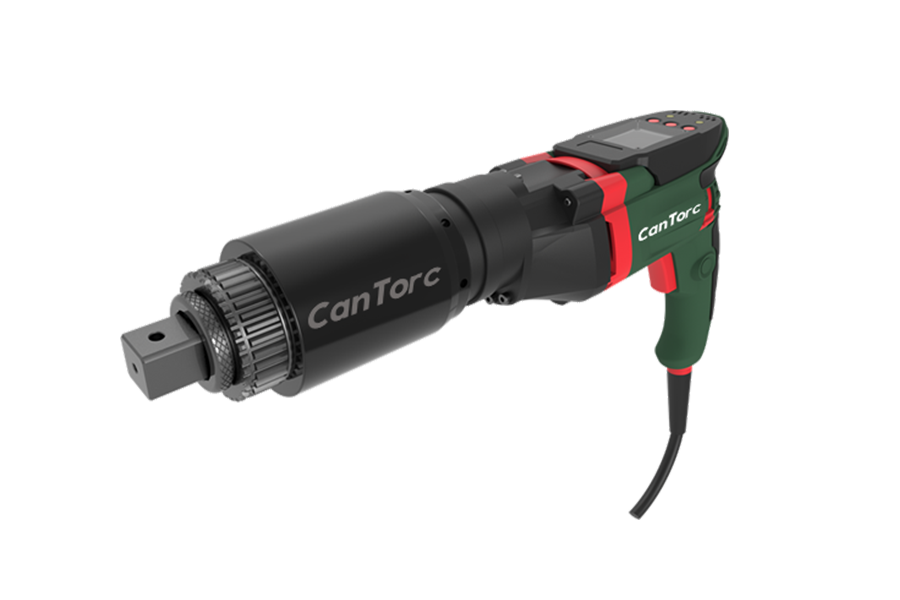

The power supply voltage regulator unit and input voltage rectification feedback control function can restrain the fluctuation of power grid input voltage and improve torque precision.
Precision ±5%, repeatability ±2%.
Follow-up monitoring of tightening results (failed, success, uncompleted).

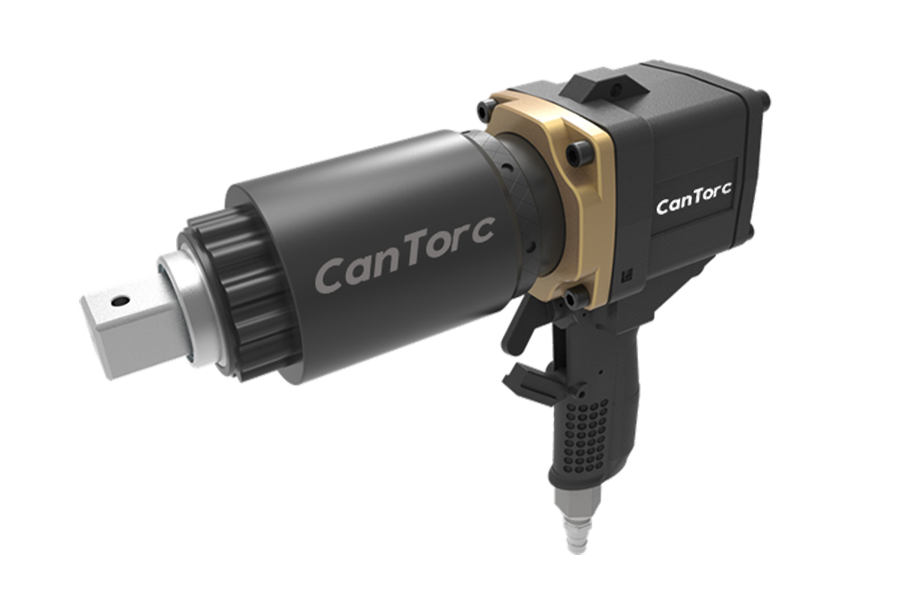

Pneumatic Torque Wrench

 Extremely excellent power to weight ratio Wider torque range, suitable for multiple stations

 The use of multi pole gearbox has no competitive reliability Constant speed and stable output

Gun design, in line with human mechanics, more portable

Torque output in forward and reverse directions

 Low noise, non impact output torque

Accuracy ± 5% (correct air supply pressure and volume are required)

PCX series Pneumatic Torque Wrenches

Extremely excellent power-weight ratio. Wider torque range

With multipole gearbox, there is no competitive reliability. Uniform and stable output

Gun design, in line with human mechanics, more portable

Equal Torque Output in Forward and Reverse Directions

Low noise, non-impact output torque

Accuracy (+5%) and repeatability (+2%)

Extremely high cost performance ratio

Description:

Robust Gearbox Drive

Auto-Engaging Geared Nut Rotator

Small diameter, high load 2-Stage hydraulic load

cell

Fast application using 1/2" drive

Cycle counter optional (Add “A” to end of part

number)

Max Pressure: 1,350 bar (19,580 psi)

Description:

TSR SPRING RETURN BOLT

TENSIONER

The Spring Return design dramatically increases

productivity and safety on the job site when compared to

older technology manual return tensioners.

Piston overstroke prevention

Piston stroke indication

Unique quick release bridge adaptation

Piston/cylinder misalignment compensation

Bolt coverage from 3/4" to 4" (20 - 115 mm) with just

8 tools

Designed to fit BS1560/ANSI B16.5/API flanges

Fully enclosed load cell design eliminates entry of

debris into piston retraction mechanism

Piston over-stroke eliminator to prevent over stroking

and blowing a seal

Twin hydraulic couplings for multiple tool connections

Requires stud to protrude above nut by 1 x bolt

diameter

Application specific tooling available. Contact factory

for details.

10 mm piston stroke

Max tool pressure: 1,500 bar (21,750 psi)

Bolt protrusion above nut: 1 x bolt diameter (minimum)

Weight excludes puller sleeve

Need to order load cell and adapter kit to have complete tensioner

To convert to long tons, divide lbf by 2240. To convert to short tons, divide lbf by 2000.

All bolt diameters ≤ 1" are UNC and all diameters >1" are 8UN. All metric threads are Metric Coarse

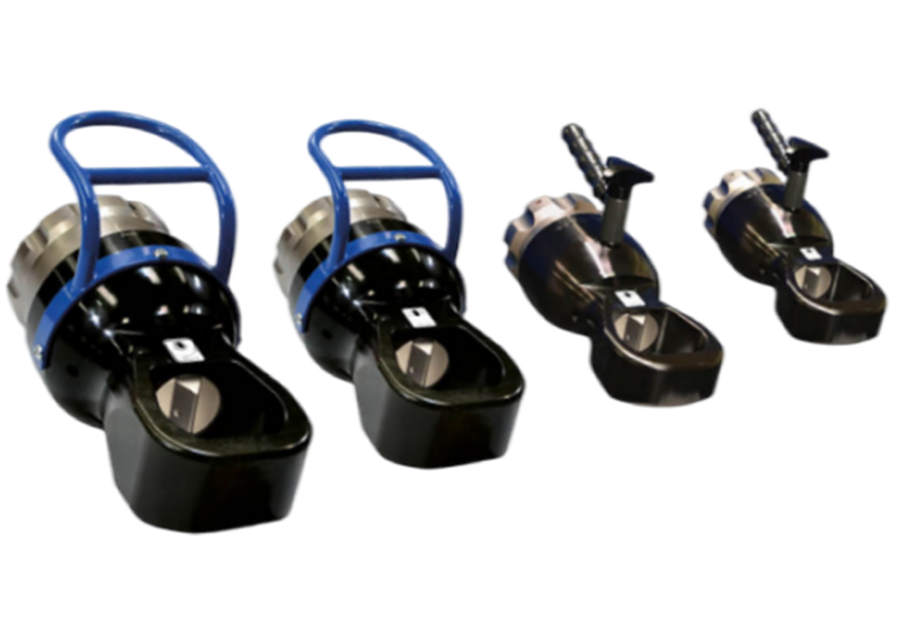

Description

Model: Series CTNS

Product Line: Industrial Tools, Bolting Tools

Designed to fit standard BS/ANSI flanges

Blade positioning scale to eliminate bolt damage

The power head can be adjusted to preset the blade cutting distance in order to prevent damage to the bolt thread as the nut is cut. The blade positioning scale can be used with the following bolt and nut forms:

Unified bolt threads (UN) with heavy series hexagon nuts

Metric bolt threads (M) with standard series hexagon nuts

Adjustable cutting depth

Ergonomically designed and positioned handle

Interchangeable power heads with cutting blade

Single-acting spring return power head

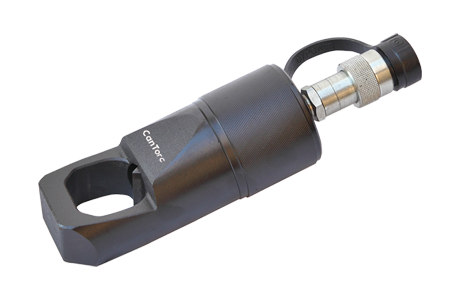

Description  Series CTNC

Model: Series CTNC

Product Line: Industrial Tools, Bolting Tools

Compact and ergonomic design, easy to use

Unique angled head design

Single-acting, spring return cylinder

Heavy duty chisels can be reground

Nut Splitters include spare chisel, spare set screw and wrench used to secure the chisel.

For applications with bolt sizes that are common to two tool model sizes, we recommend to select the larger of the two tools for the best results.
