Description

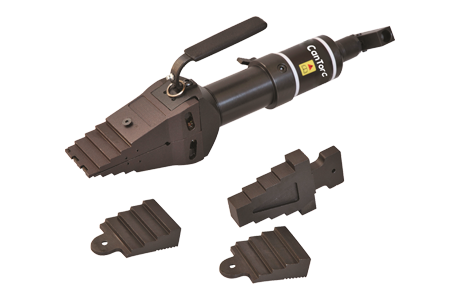

Model: SW-15 Series: SW
Integrated wedge concept: friction-free, smooth, parallel wedge movement eliminates flange damage and spreading arm failure
Unique interlocking wedge design: no first step bending and risk of slipping out of joint
Requires very small access gap of only 6 mm
Stepped spreader arm design: each step can spread under full load
Few moving parts means durability and low maintenance
Safety block ST1 and single-acting cylinder included
Model No. | Maximum Spreading Force ton（kN） | Tip Clearance （mm） | Maximum Spread （mm） | Power Source | Oil capacity （cm3 ） | Weight （kg） |
SW-15 | 14.5（125） | 6 | 81 | Hydraulic | 78 | 7.7 |
