Description

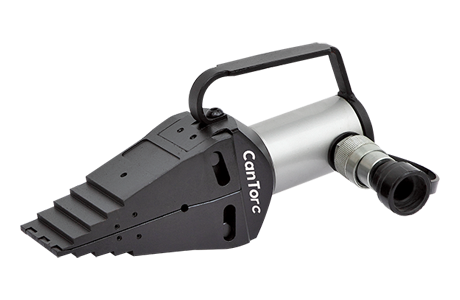

Model:CTSH-14
Series:CTSH-14 Product Line: Industrial Tools, Bolting Tools
Integrated wedge concept: Friction-free, smooth and parallel wedge movement eliminates flange damage and spreading arm failure
Unique interlocking wedge design - no first step bending and risk of slipping out of joint
Requires very small access gap of only 6 mm
Stepped spreader arm design - each step can spread under full load
Few moving parts mean durability and low maintenance
Safety block ST1 and Cantorc RC102 single-acting cylinder included
Description
Model:CTSH-14
Series:CTSH-14 Product Line: Industrial Tools, Bolting Tools
Model No. | Maximum Spreading Force ton（kN） | Tip Clearance （mm） | Maximum Spread （mm） | Power Source | Oil capacity （cm3 ） | Weight （kg） |
CTSH-8 | 8（72） | 6 | 81 | Mechanical | - | 6.5 |
CTSH-14 | 14（125） | 6 | 81 | Hydraulic | 78 | 7.1 |
Description
Model:CTSH-14
Series:CTSH-14 Product Line: Industrial Tools, Bolting Tools
Model No. | Maximum Spreading Force ton（kN） | Tip Clearance （mm） | Maximum Spread （mm） | Power Source | Oil capacity （cm3 ） | Weight （kg） |
CTSH-8 | 8（72） | 6 | 81 | Mechanical | - | 6.5 |
CTSH-14 | 14（125） | 6 | 81 | Hydraulic | 78 | 7.1 |
