Description

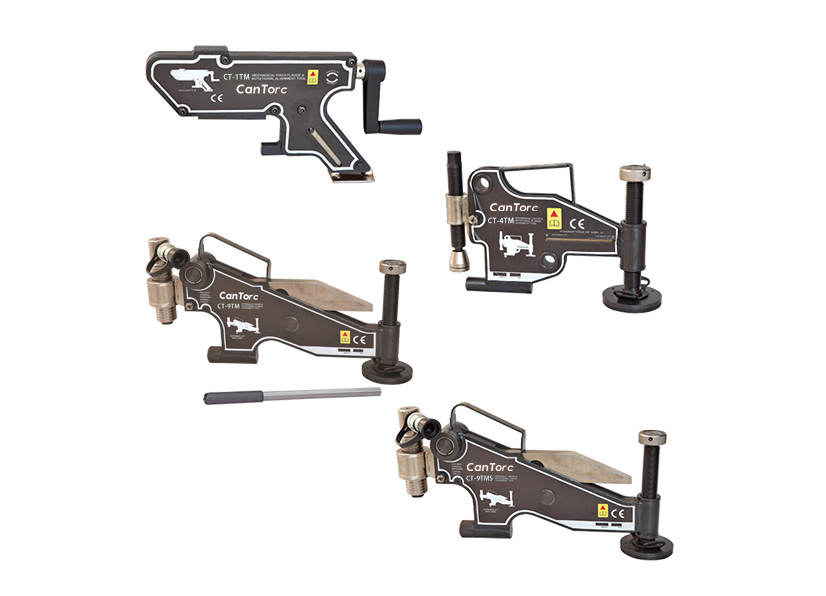

Model: CT-TM Series: CT-TM
Cantorc CT-TM-Series tools rectify twist and rotational misalignment quickly, safely and without the need for an external power source
Appropriate for use on most ANSI, API, BS and DIN flanges
Reduces set-up time: no need for chains, pulleys or rigs
Safety strap helps provide secure operation
Can be installed and used in any position
Portable, lightweight design enables easy transport and use, even in remote locations

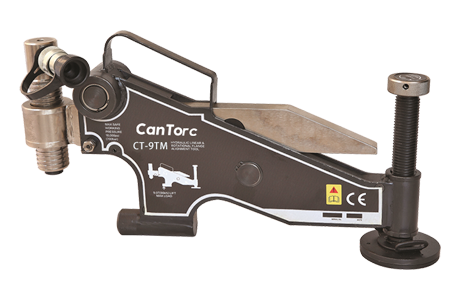

The CT-9TMS includes a P142 hand pump and HC7206C 2 m long hose. pressure gauge and GA3 gauge adaptor recommended.
Description
Model: CT-TM Series: CT-TM
Cantorc CT-TM-Series tools rectify twist and rotational misalignment quickly, safely and without the need for an external power source
Appropriate for use on most ANSI, API, BS and DIN flanges
Reduces set-up time: no need for chains, pulleys or rigs
Safety strap helps provide secure operation
Can be installed and used in any position
Portable, lightweight design enables easy transport and use, even in remote locations
The CT-9TMS includes a P142 hand pump and HC7206C 2 m long hose. pressure gauge and GA3 gauge adaptor recommended.
Description
Model: CT-TM Series: CT-TM
型号 | 最大调整力 ton（kN） | 螺栓孔范围 | 法兰厚度 | 重量（kg） | ||
（mm） | （inch） | （mm） | （inch） | |||
CT-1TM-1 | 10 | 0.63 | 15 | 0.55-3.29 | 14-82 | 2.3 |
CT-4TM | 40 | 0.95 | 23 | 1.18-5.23 | 30-133 | 9.0 |
CT-9TM | 90 | 1.24 | 31 | 3.66-9.00 | 93-288 | 16.2 |
CT-9TMS | 90 | 1.24 | 31 | 3.66-9.00 | 93-288 | 16.5 |
Cantorc CT-TM-Series tools rectify twist and rotational misalignment quickly, safely and without the need for an external power source
Appropriate for use on most ANSI, API, BS and DIN flanges
Reduces set-up time: no need for chains, pulleys or rigs
Safety strap helps provide secure operation
Can be installed and used in any position
Portable, lightweight design enables easy transport and use, even in remote locations
The CT-9TMS includes a P142 hand pump and HC7206C 2 m long hose. pressure gauge and GA3 gauge adaptor recommended.
