Description
Model: CTSWI
Series: CTSWI Product Line: Bolting Tools

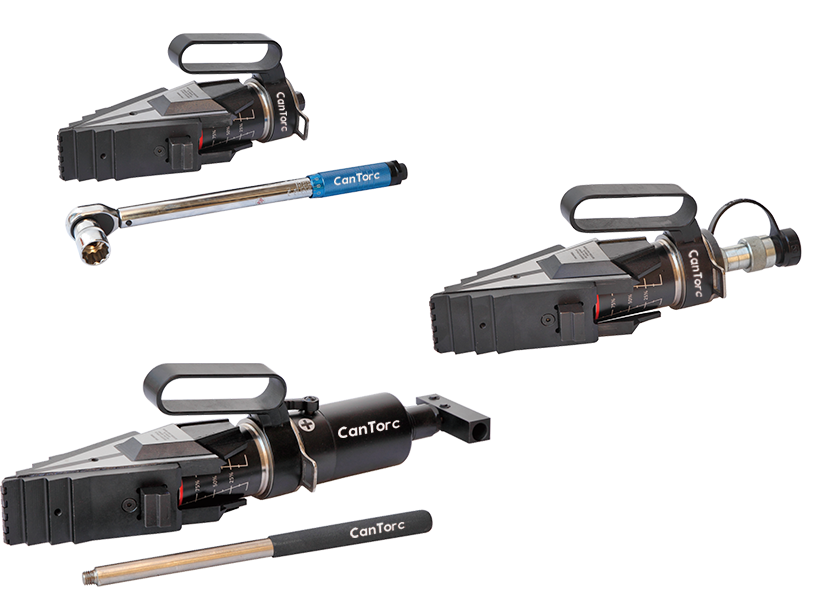

Innovative flange spreading wedges. A simple solution to hydraulically spread flange joints with a minimum access gap of 6.0 mm (0.24") and certified for use in hazardous areas.
Description
Model: CTSWI
Series: CTSWI Product Line: Bolting Tools
Innovative flange spreading wedges. A simple solution to hydraulically spread flange joints with a minimum access gap of 6.0 mm (0.24") and certified for use in hazardous areas.
Model No. | Maximum Spreading Force ton（kN） | Tip Clearance （mm） | Maximum Spread （mm） | Power Source | Oil capacity （cm3 ） | Weight （kg） |
CTSW4I | 7.7 | 4 | 101 | External Hydraulic | 70 | 6 |
CTSW4S | 7.7 | 4 | 101 | Hydraulic | - | 8 |
CTSW14T | 14 | 6 | 103 | Mechanical | - | 11 |
CTSW25I | 24 | 6 | 103 | Hydraulic | - | 13 |
CTSW25S | 24 | 6 | 103 | External Hydraulic | 250 | 10 |
Description
Model: CTSWI
Series: CTSWI Product Line: Bolting Tools
Innovative flange spreading wedges. A simple solution to hydraulically spread flange joints with a minimum access gap of 6.0 mm (0.24") and certified for use in hazardous areas.
Model No. | Maximum Spreading Force ton（kN） | Tip Clearance （mm） | Maximum Spread （mm） | Power Source | Oil capacity （cm3 ） | Weight （kg） |
CTSW4I | 7.7 | 4 | 101 | External Hydraulic | 70 | 6 |
CTSW4S | 7.7 | 4 | 101 | Hydraulic | - | 8 |
CTSW14T | 14 | 6 | 103 | Mechanical | - | 11 |
CTSW25I | 24 | 6 | 103 | Hydraulic | - | 13 |
CTSW25S | 24 | 6 | 103 | External Hydraulic | 250 | 10 |
