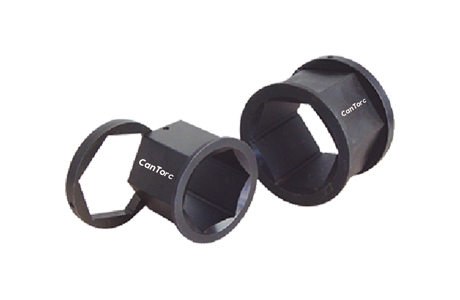

产品名称： 中空变径套筒

上市日期：2023-06-01

中空变径套筒

中空变径套筒

产品介绍： Wrench Model液压扳手型号Cassette工作头对边尺寸Nut Size螺母规格 ...

类型：

颜色：

主色：，配色：

产品概述
产品规格
详细参数


Wrench Model液压扳手型号	Cassette 工作头对边尺寸	Nut Size螺母规格	Reducer Insert 变径规格						Locking
Wrench Model液压扳手型号	Cassette 工作头对边尺寸	(S)	Type	A/B(mm)	Type	A/B(mm)	Type	A/B(mm)	ring锁紧环
CF02	CF02-50	50	2G5041	50/41	2G5036	50/36	2G5032	50/32	H-50
	CF02-46	46	2G4636	46/36	2G4632	46/32	2G4630	46/30	H-46
	CF02-41	41	2G4132	41/32	2G4130	41/30	2G4127	41/27	H-41
	CF02-36	36	2G3630	36/30	2G3627	36/27			H-36
	CF02-32	32	2G3227	32/27					H-32
	CF02-30	30
	CF02-27	27
CF04	CF04-65	65	4G6555	65/55	4G6550	65/50	4G6546	65/46	H-56
	CF04-60	60	4G6050	60/50	4G6046	60/46	4G6041	60/41	H-60
	CF04-55	55	4G5546	55/46	4G5541	55/41	4G5536	55/36	H-55
	CF04-50	50	4G5041	50/41	4G5036	50/36	4G5032	50/32	H-50
	CF04-46	46	4G4636	46/36	4G4632	46/32	4G4630	46/30	H-46
	CF04-41	41	4G4132	41/32	4G4130	41/30	4G4127	41/27	H-41
	CF04-36	36	4G3630	36/30	4G3627	36/27			H-36
	CF04-32	32	4G3227	32/27					H-32
	CF04-30	30
	CF04-27	27
CF8	CF8-90	90	8G9080	90/80	8G9075	90/75	8G9070	90/70	H-90
	CF8-85	85	8G8575	85/75	8G8570	85/70	8G8565	85/65	H-85
	CF8-80	80	8G8070	80/70	8G8065	80/65	8G8060	80/60	H-80
	CF8-75	75	8G7565	75/65	8G7560	75/60	8G7555	75/55	H-75
	CF8-70	70	8G7060	70/60	8G7055	70/55	8G7050	70/50	H-70
	CF8-65	65	8G6555	65/55	8G6550	65/50	8G6545	65/45	H-65
	CF8-60	60	8G6050	60/50	8G6046	60/46			H-60
	CF8-55	55	8G5546	55/46	8G5541	55/41			H-55
	CF8-50	50
CF14	CF14-115	115	14G115105	115/105	14G115100	115/100	14G11595	115/95	H-115
	CF14-110	110	14G110100	110/100	14G11095	110/95	14G11090	110/90	H-110
	CF14-105	105	14G10595	105/95	14G10590	105/90	14G10585	105/85	H-105
	CF14-100	100	14G10090	100/90	14G10085	100/85	14G10080	100/80	H-100
	CF14-95	95	14G9585	95/85	14G9580	95/80	14G9575	95/75	H-95
	CF14-90	90	14G9080	90/80	14G9075	90/75	14G9070	90/70	H-90
	CF14-85	85	14G8575	85/75	14G8570	85/70	14G8565	85/65	H-85
	CF14-80	80	14G8070	80/70	14G8065	80/65			H-80
	CF14-75	75	14G7565	75/65					H-75
	CF14-70	70
	CF14-65	65
CF30	CF30-155	155	30G155145	155/145	30G155130	155/130	30G155120	155/120	H-155
	CF30-145	145	30G145130	145/130	30G145120	145/120	30G145115	145/115	H-145
	CF30-130	130	30G130120	130/120	30G130115	130/115	30G130110	130/110	H-130
	CF30-120	120	30G120110	120/110	30G120105	120/105	30G120100	120/100	H-120
	CF30-115	115	30G115105	115/105	30G115100	115/100	30G115595	115/95	H-115
	CF30-110	110	30G110100	110/100	30G11095	110/95	30G11090	110/90	H-110
	CF30-105	105	30G10595	105/95	30G10590	105/90	30G10080	100/80	H-100
	CF30-100	100	30G10090	100/90	30G10085	100/85	30G10080	100/80	H-100
	CF30-95	95	30G9585	95/85	30G9580	95/80			H-95
	CF30-90	90	30G9080	90/80					H-90
	CF30-85	85
	CF30-80	80


Wrench Model	Cassette	Nut Size	Reducer Insert						Locking
Wrench Model	Cassette	(S)	Type	A/B(mm)	Type	A/B(mm)	Type	A/B(mm)	ring
CF02	CF02-50	50	2G5041	50/41	2G5036	50/36	2G5032	50/32	H-50
	CF02-46	46	2G4636	46/36	2G4632	46/32	2G4630	46/30	H-46
	CF02-41	41	2G4132	41/32	2G4130	41/30	2G4127	41/27	H-41
	CF02-36	36	2G3630	36/30	2G3627	36/27			H-36
	CF02-32	32	2G3227	32/27					H-32
	CF02-30	30
	CF02-27	27
CF04	CF04-65	65	4G6555	65/55	4G6550	65/50	4G6546	65/46	H-56
	CF04-60	60	4G6050	60/50	4G6046	60/46	4G6041	60/41	H-60
	CF04-55	55	4G5546	55/46	4G5541	55/41	4G5536	55/36	H-55
	CF04-50	50	4G5041	50/41	4G5036	50/36	4G5032	50/32	H-50
	CF04-46	46	4G4636	46/36	4G4632	46/32	4G4630	46/30	H-46
	CF04-41	41	4G4132	41/32	4G4130	41/30	4G4127	41/27	H-41
	CF04-36	36	4G3630	36/30	4G3627	36/27			H-36
	CF04-32	32	4G3227	32/27					H-32
	CF04-30	30
	CF04-27	27
CF8	CF8-90	90	8G9080	90/80	8G9075	90/75	8G9070	90/70	H-90
	CF8-85	85	8G8575	85/75	8G8570	85/70	8G8565	85/65	H-85
	CF8-80	80	8G8070	80/70	8G8065	80/65	8G8060	80/60	H-80
	CF8-75	75	8G7565	75/65	8G7560	75/60	8G7555	75/55	H-75
	CF8-70	70	8G7060	70/60	8G7055	70/55	8G7050	70/50	H-70
	CF8-65	65	8G6555	65/55	8G6550	65/50	8G6545	65/45	H-65
	CF8-60	60	8G6050	60/50	8G6046	60/46			H-60
	CF8-55	55	8G5546	55/46	8G5541	55/41			H-55
	CF8-50	50
CF14	CF14-115	115	14G115105	115/105	14G115100	115/100	14G11595	115/95	H-115
	CF14-110	110	14G110100	110/100	14G11095	110/95	14G11090	110/90	H-110
	CF14-105	105	14G10595	105/95	14G10590	105/90	14G10585	105/85	H-105
	CF14-100	100	14G10090	100/90	14G10085	100/85	14G10080	100/80	H-100
	CF14-95	95	14G9585	95/85	14G9580	95/80	14G9575	95/75	H-95
	CF14-90	90	14G9080	90/80	14G9075	90/75	14G9070	90/70	H-90
	CF14-85	85	14G8575	85/75	14G8570	85/70	14G8565	85/65	H-85
	CF14-80	80	14G8070	80/70	14G8065	80/65			H-80
	CF14-75	75	14G7565	75/65					H-75
	CF14-70	70
	CF14-65	65
CF30	CF30-155	155	30G155145	155/145	30G155130	155/130	30G155120	155/120	H-155
	CF30-145	145	30G145130	145/130	30G145120	145/120	30G145115	145/115	H-145
	CF30-130	130	30G130120	130/120	30G130115	130/115	30G130110	130/110	H-130
	CF30-120	120	30G120110	120/110	30G120105	120/105	30G120100	120/100	H-120
	CF30-115	115	30G115105	115/105	30G115100	115/100	30G115595	115/95	H-115
	CF30-110	110	30G110100	110/100	30G11095	110/95	30G11090	110/90	H-110
	CF30-105	105	30G10595	105/95	30G10590	105/90	30G10080	100/80	H-100
	CF30-100	100	30G10090	100/90	30G10085	100/85	30G10080	100/80	H-100
	CF30-95	95	30G9585	95/85	30G9580	95/80			H-95
	CF30-90	90	30G9080	90/80					H-90
	CF30-85	85
	CF30-80	80

Wrench Model	Cassette	Nut Size	Reducer Insert						Locking
Wrench Model	Cassette	(S)	Type	A/B(mm)	Type	A/B(mm)	Type	A/B(mm)	ring
CF02	CF02-50	50	2G5041	50/41	2G5036	50/36	2G5032	50/32	H-50
	CF02-46	46	2G4636	46/36	2G4632	46/32	2G4630	46/30	H-46
	CF02-41	41	2G4132	41/32	2G4130	41/30	2G4127	41/27	H-41
	CF02-36	36	2G3630	36/30	2G3627	36/27			H-36
	CF02-32	32	2G3227	32/27					H-32
	CF02-30	30
	CF02-27	27
CF04	CF04-65	65	4G6555	65/55	4G6550	65/50	4G6546	65/46	H-56
	CF04-60	60	4G6050	60/50	4G6046	60/46	4G6041	60/41	H-60
	CF04-55	55	4G5546	55/46	4G5541	55/41	4G5536	55/36	H-55
	CF04-50	50	4G5041	50/41	4G5036	50/36	4G5032	50/32	H-50
	CF04-46	46	4G4636	46/36	4G4632	46/32	4G4630	46/30	H-46
	CF04-41	41	4G4132	41/32	4G4130	41/30	4G4127	41/27	H-41
	CF04-36	36	4G3630	36/30	4G3627	36/27			H-36
	CF04-32	32	4G3227	32/27					H-32
	CF04-30	30
	CF04-27	27
CF8	CF8-90	90	8G9080	90/80	8G9075	90/75	8G9070	90/70	H-90
	CF8-85	85	8G8575	85/75	8G8570	85/70	8G8565	85/65	H-85
	CF8-80	80	8G8070	80/70	8G8065	80/65	8G8060	80/60	H-80
	CF8-75	75	8G7565	75/65	8G7560	75/60	8G7555	75/55	H-75
	CF8-70	70	8G7060	70/60	8G7055	70/55	8G7050	70/50	H-70
	CF8-65	65	8G6555	65/55	8G6550	65/50	8G6545	65/45	H-65
	CF8-60	60	8G6050	60/50	8G6046	60/46			H-60
	CF8-55	55	8G5546	55/46	8G5541	55/41			H-55
	CF8-50	50
CF14	CF14-115	115	14G115105	115/105	14G115100	115/100	14G11595	115/95	H-115
	CF14-110	110	14G110100	110/100	14G11095	110/95	14G11090	110/90	H-110
	CF14-105	105	14G10595	105/95	14G10590	105/90	14G10585	105/85	H-105
	CF14-100	100	14G10090	100/90	14G10085	100/85	14G10080	100/80	H-100
	CF14-95	95	14G9585	95/85	14G9580	95/80	14G9575	95/75	H-95
	CF14-90	90	14G9080	90/80	14G9075	90/75	14G9070	90/70	H-90
	CF14-85	85	14G8575	85/75	14G8570	85/70	14G8565	85/65	H-85
	CF14-80	80	14G8070	80/70	14G8065	80/65			H-80
	CF14-75	75	14G7565	75/65					H-75
	CF14-70	70
	CF14-65	65
CF30	CF30-155	155	30G155145	155/145	30G155130	155/130	30G155120	155/120	H-155
	CF30-145	145	30G145130	145/130	30G145120	145/120	30G145115	145/115	H-145
	CF30-130	130	30G130120	130/120	30G130115	130/115	30G130110	130/110	H-130
	CF30-120	120	30G120110	120/110	30G120105	120/105	30G120100	120/100	H-120
	CF30-115	115	30G115105	115/105	30G115100	115/100	30G115595	115/95	H-115
	CF30-110	110	30G110100	110/100	30G11095	110/95	30G11090	110/90	H-110
	CF30-105	105	30G10595	105/95	30G10590	105/90	30G10080	100/80	H-100
	CF30-100	100	30G10090	100/90	30G10085	100/85	30G10080	100/80	H-100
	CF30-95	95	30G9585	95/85	30G9580	95/80			H-95
	CF30-90	90	30G9080	90/80					H-90
	CF30-85	85
	CF30-80	80
