Description

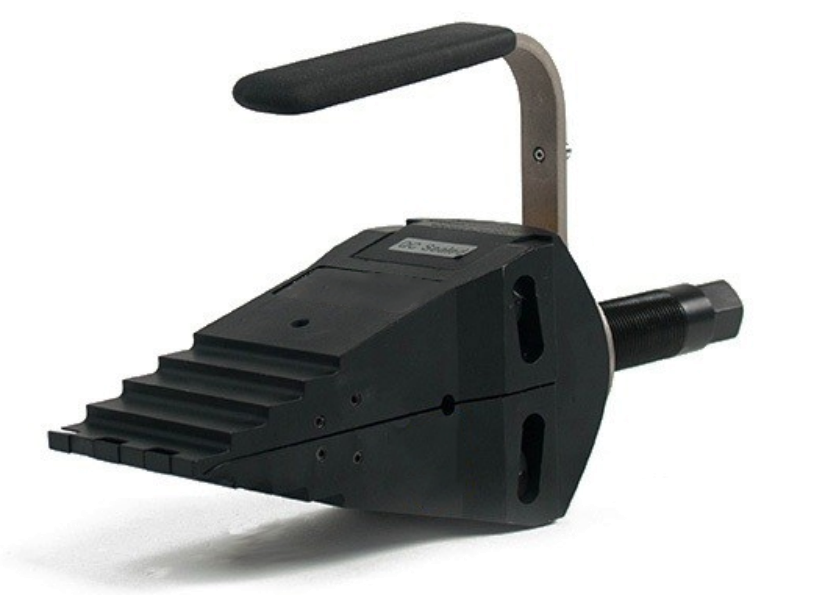

Model: CTSH-8 Series: CTSH
Integrated wedge concept: Friction-free, smooth and parallel wedge movement eliminates flange damage and spreading arm failure
Unique interlocking wedge design - no first step bending and risk of slipping out of joint
Requires very small access gap of only 6 mm
Stepped spreader arm design - each step can spread under full load
Few moving parts mean durability and low maintenance
Safety block ST-1 and ratchet spanner SU-22 included
Description
Model: CTSH-8 Series: CTSH
Model No. | Maximum Spreading Force ton（kN） | Tip Clearance （mm） | Maximum Spread （mm） | Power Source | Oil capacity （cm3 ） | Weight （kg） |
CTSH-8 | 8（72） | 6 | 81 | Mechanical | - | 6.6 |
Model No. | Maximum Spreading Force ton（kN） | Tip Clearance （mm） | Maximum Spread （mm） | Power Source | Oil capacity （cm3 ） | Weight （kg） |
CTSH-8 | 8（72） | 6 | 81 | Mechanical | - | 6.6 |
